4-port KUMA Switch-Made in Taiwan

Product Images

[ KM04A ] 4-port KUMA Switch

The KM04A 4-Port USB&Audio KUMA Switch allows you to control four computers using one USB mouse, USB

keyboard console. It supports USB devices and Audio. It is a KVM switch

without the video switching - all displays are continuously connected to their respective computers. Users can see all

the connected computers at the same time and easily decide on which computer he wants to work. The screen-location

configuration of the KUMA switch can be done by using the KUMA presets via hotkeys.

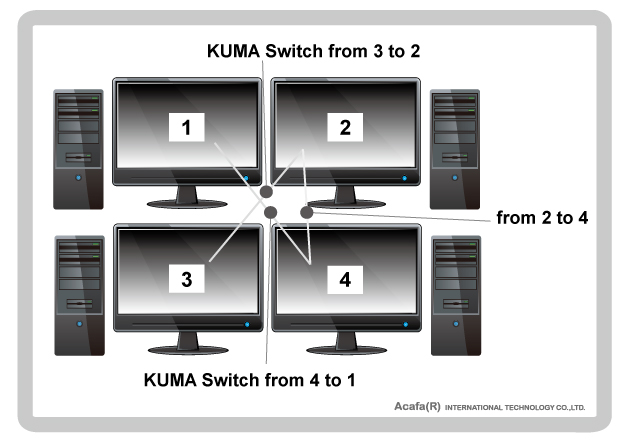

	Seamless Cursor Switching (SCS):
	SCS allows the KUMA to switch automatically between computers once mouse cursor crosses display borders. The
	switching is seamless between multiple computers with cursor movement.
	Configuration options:
	Administrator mode provides the setting of the display arrangement.
	Audio Support:
	The KUMA supports audio out switching. Microphone switching is not supported.
	Made in Taiwan.

1 x User Manual

Model		KM04A
Host	USB	USB (Type-B) x 4
Audio	Audio jack (3.5mm female) x 4
User Operating-System (OS)	Win XP / Win 7 (32/64-bit) / Win 8 (32/64 bit)
Console	KB/MS Console Ports	USB (Type-A) keyboard Console Port x 1 USB (Type-A) mouse Console Port x 1
Console	Audio port	Stereo speaker (3.5mm female) x1
Control	User Channel Selection Method	By the mouse movement By the button on the front panel
	Port Selector Push Buttons	4
	Channel Selected LED Indication	4
	Embedded buzzer	1 (to indicate the button press or the mode-configuration while power-on or the mode-changed)

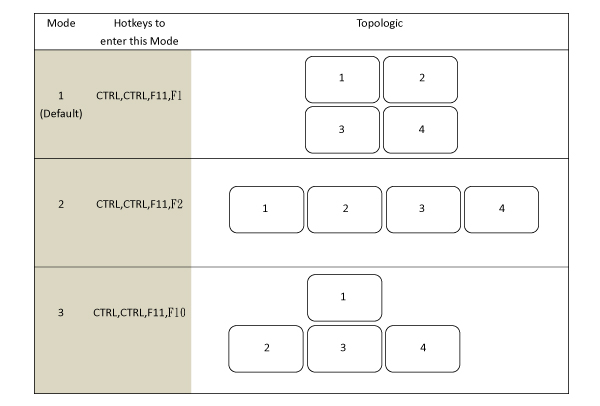

	Pre-Defined Configuration List	See FIG-*
Power	DC-in	12V DC / 1A Center-pin-positive polarity
Power	Power Adapter	100 to 240 VAC, Freq. 50/60Hz
Environment	Operation Temp	0 to 40 degree C
	Storage	20 to 60 degree C
	Humidity	0-80% RH, non-condensing
Mechanism	Dimension (PCB)	300 x 150 mm
Mechanism	Weight	{TBD} Kg
